DB940A SERIES DOUBLE-ENDED SHEAR BEAM LOAD CELL
Product description:

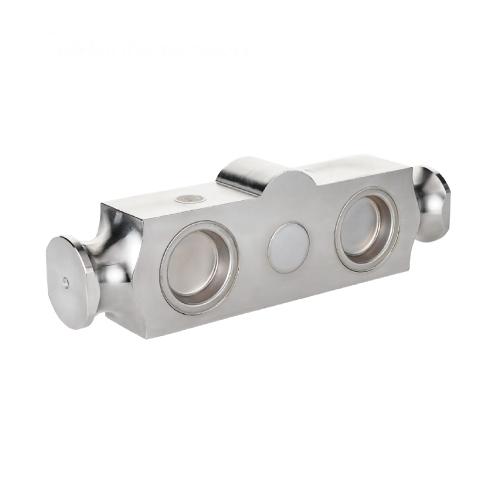

DB940A is a double ended shear beam, both ends loaded, center supported via self-aligning semicircular arc convex structure, so that the force can be applied properly. This load cell is suitable for a wide range of truck scales, giant vessel scales and rail scales. It is designed to be lifted via a pair of parallel connected ring at both ends. Fully alloy steel construct, hermetically sealed, which ensure high seals performance of waterproof.
Main Features:
• Material: Alloy steel
• Rated Capacities: 25klb~100klb
• OIML NTEP HB44, CE and RoHS certified
• IP Rating: IP68
• Suitable for truck scale, heavy duty hopper scales and other electronic weighing devices.
• High precision by NTEP III L 10000, high reliability.
For customised ranges, accuracy, dimensions and other parameters, please contact us.
| Patameter | Units | Specifications | |||
| Model No. | DB940A | ||||
| Rated capacity (Emax) | Ibs | 25K / 40K / 50K / 75K / 100K | |||
| Accruacy class 1)2) | % of Emax | ± 0.02 | |||
| Min. dead load | Ib | 0 | |||
| Rated output | mV/V | 3.0 ± 0.1% | |||
| Zero balance | % of Emax | ± 1 | |||
| Repeatability error | % of AL 3) | ＜ ± 0.05 | |||
| Creep; 30 minute | % of AL | ＜ ± 0.02 | |||
| Min. dead load output return (DR); 30 min | % of AL | ＜ ± 0.02 | |||
| Temp. effect on | Min. dead load output | % of Emax/℃ | ＜ ± 0.002 | ||
| Rated output 2) | % of AL/℃ | ＜ ± 0.002 | |||
| Temperature range | Compensated | ℃(°F) | -10 to +40 [+14 to +104] | ||
| Operating | -40 to +65 [-40 to +149] | ||||
| Safe storage | -40 to +80 [-40 to +176] | ||||
| Excitation voltage | Recommended | V AC/DC | 5 ~ 15 | ||
| Maximum | 20 | ||||
| Terminal resistance | Excitation | Ω | 766 ± 10 | ||
| Output | 700 ± 3 | ||||
| Insulation resistance @50VDC | MΩ | ＞5000 | |||
| Breakdown voltage | V AC | ＞500 | |||
| Seal type / IP rating | Hermetically welded / IP68 | ||||
| Load limit | Safe | % of Emax | 150 | ||
| Ultimate | 200 | ||||
| Material | Spring element | Alloy steel nickel plated | |||
| Cable | Φ6; 4-wire; PVC | ||||
| Cable length | ft | 52.5 | |||
| Weight; approx | lb | 25-40K | 50-75K | 100K | |
| 12.0 | 18.0 | 40.0 | |||
| Fatigue life | cycles @Emax | ＞1,000,000 | |||
| Deflection at Emax; approx | mm | ＜1.5 | |||
| Notes: | |||||
| 1) Error due to the combined effect of non-linearity and hysteresis | |||||
| 2) The sum of errors due to Temperature Effect on Output comply with the requirements of OIML R60 and NIST HB44 | |||||
| 3) AL = Applied Load | |||||
