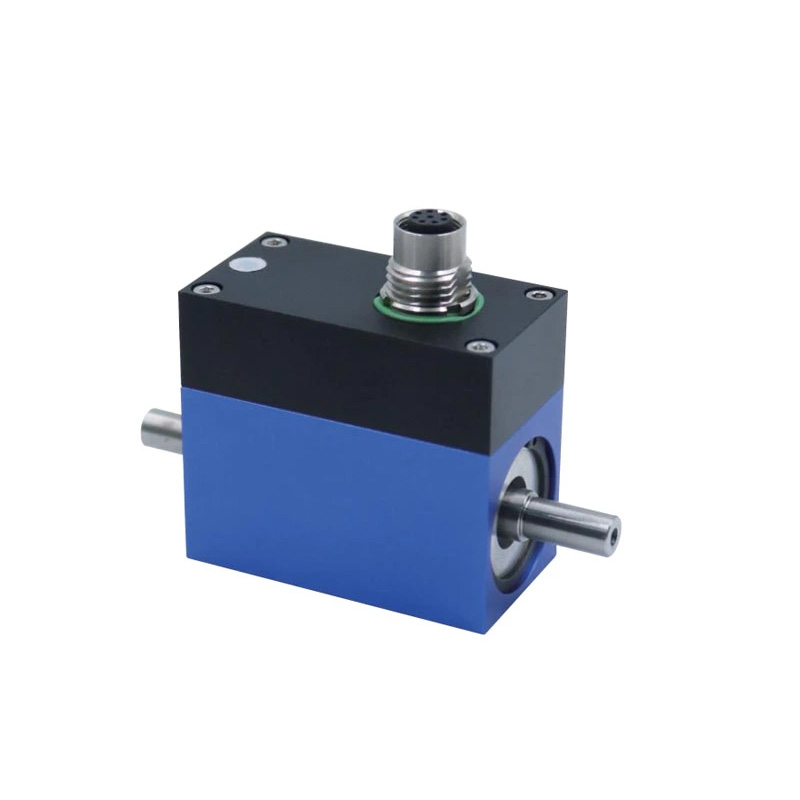

SL607B Shaft Rotory Toque Transducer
For customised ranges, accuracy, dimensions and other parameters, please contact us.
Technical Specifications
| Specfications | Technique |
| Capacity | 0.1,0.2,0.3,0.5,1,2,3，5N.m |
| Supply power | 12~30V |
| Torque outpu | 10±5Khz、4~20mA、0±5/10VDC、RS485、RS232 |
| Speed output | Standard product without encoder. Speed is 60P/R |
| Torque accuracy | ±0.1、±0.2（optional） |
| Sampling rate | 200t/S |
| Speed | 6000、8000RPM（optional） |
| Temp. effect on zero%RO/℃ | ±0.02 |
| Insulation resistance | ≥2000MΩ（100VCD) |
| Environmental temp. | -20~60℃ |
| Relative humidity | 0~90%RH |
| Overload capacity | 150% |
| Package | 5m-8 core cable, certification&user manual |

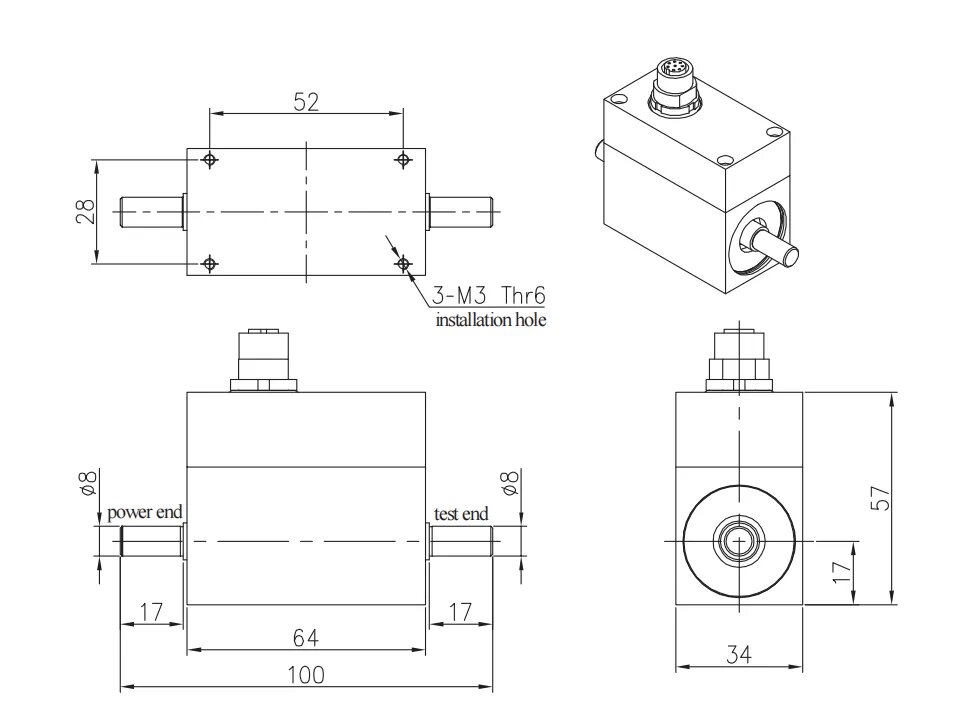

Product Dimensions
Installation size
