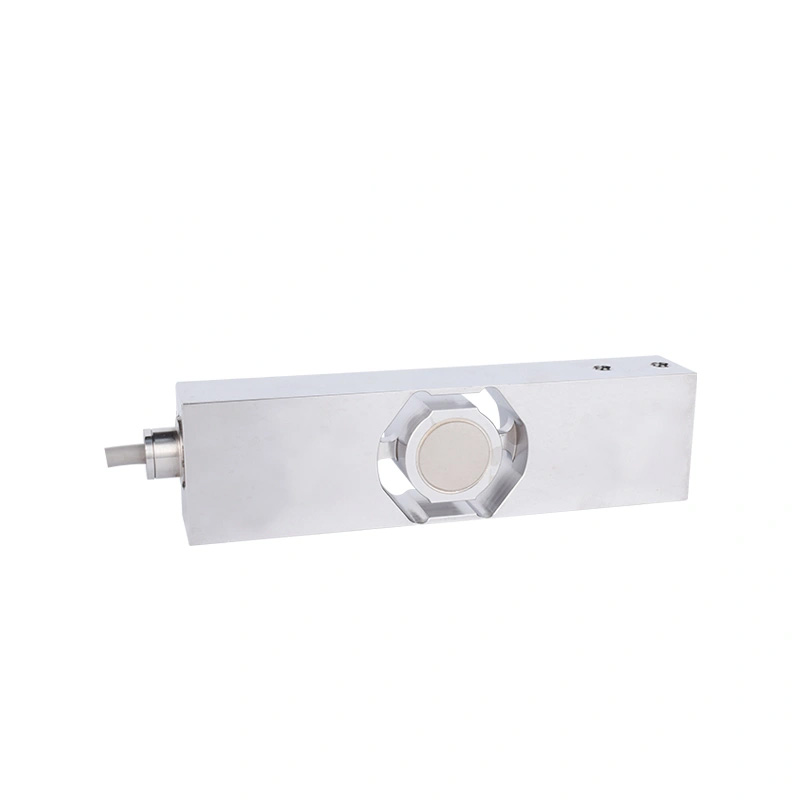

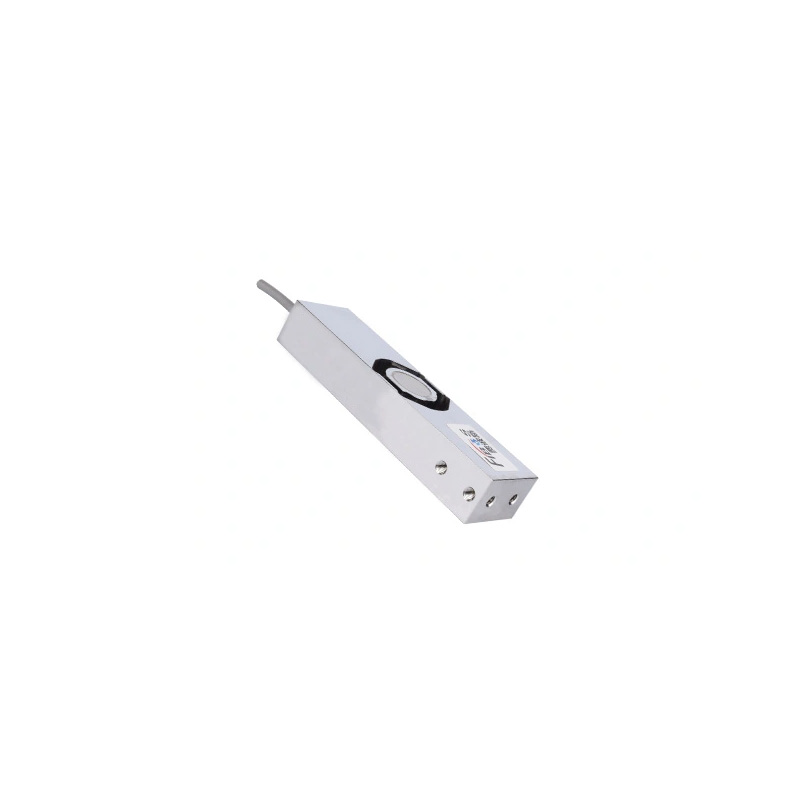

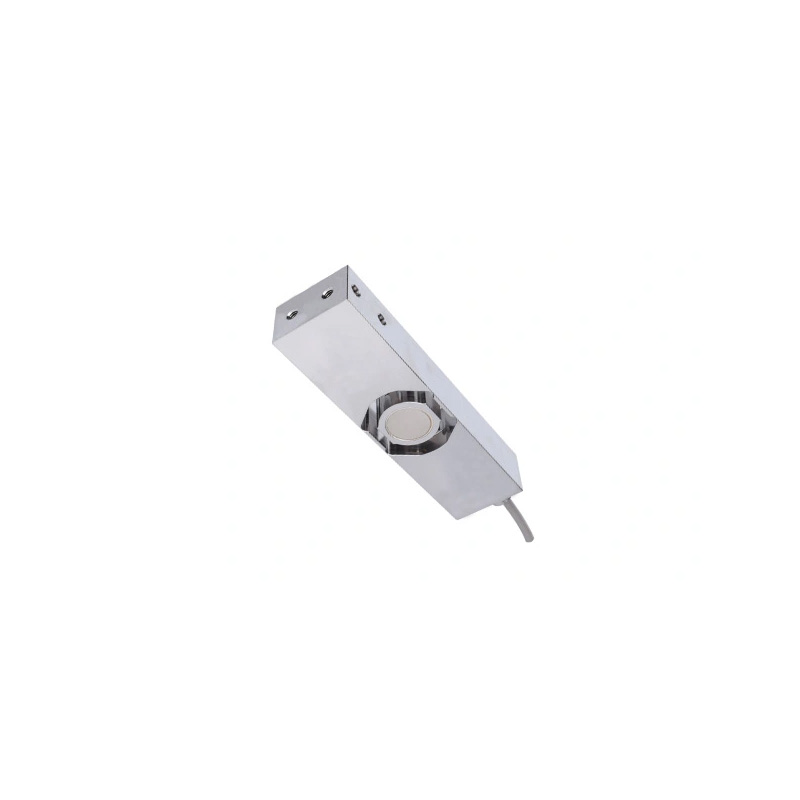

SL508 C3 Single Point Load Cell
Cantilever Beam Load Cell
L 150mm*W 25mm*H 40mm
Capacity: 10,20,50,100kg
For customised ranges, accuracy, dimensions and other parameters, please contact us.

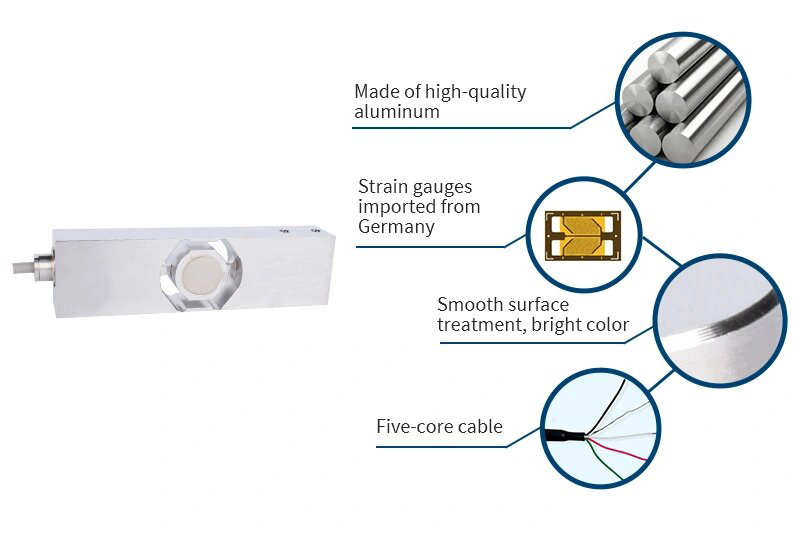

| Product FeaturesSL508 load cell is an indispensable core component in the automation system. It is made of stainless steel elastic elements, colorless anodized, and sealed with glue. The output of each point in the plane is consistent. |
Technical Specifications
| Specification | Technical Indicators |
| Capacity | 10,20,50,100kg |
| Rated Output | 2.0±10%mV/V |
| Zero Balance | ±0.05mV/V |
| Creep | ≤0.0166%F.S. |
| Non-Linearity | ≤0.0166%F.S. |
| Hysteresis | ≤0.0166%F.S. |
| Repeatability | ≤0.018%F.S. |
| Input Inpedance | 390±5Ω |
| Output Inpedance | 350±5Ω |
| Temp. effect on output | 0.0175%F.S./10℃ |
| Temp. effect on zero | 0.0125%F.S./10℃ |
| Insulation Inpendance | ≥5000MΩ/100V(DC) |
| Reconnended Excitation | 5V |
| Maximum Excitation | 12V |
| Conpensated Temp Range | -10~40℃ |
| Operating Temp Range | -10~50℃ |
| Safe Overload | 150% F.S. |
| Ultimate Overload | 200% F.S. |
| Cable Size | φ5.4X3000mm |
| Product Weight | 0.5kg |
| Material | Stainless steel |
| Maximum pan size | 50mm*400mm |

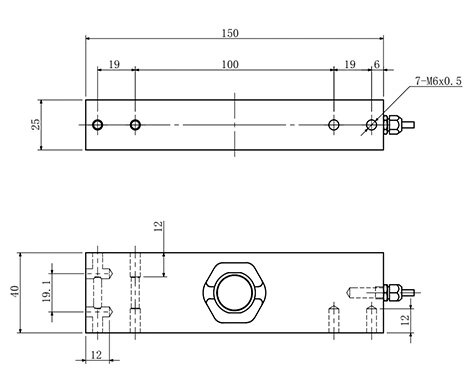

Product Dimensions
Installation size

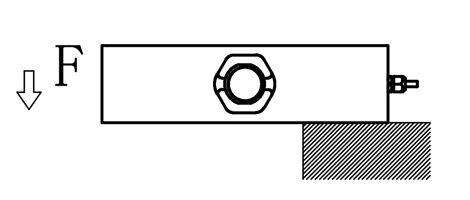

Load Direction

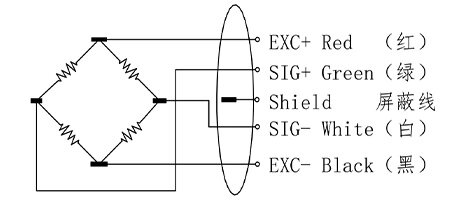

Wiring Diagram
Accurate measurement with matching display
The output of the force measuring and weighing sensor itself is an MV signal, which needs to be amplified and convertedto display numerical values or output signals to the upper computer, PLC, etc.
