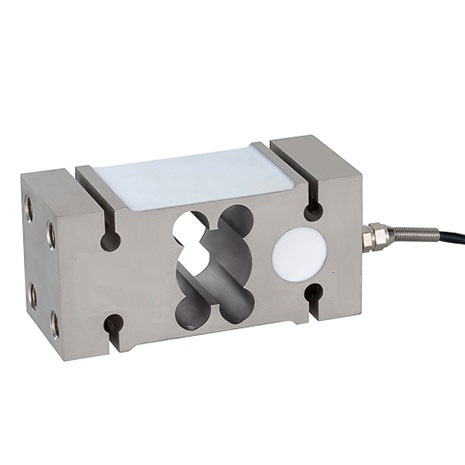

SP334A SINGLE POINT LOAD CELL
Product description:
SP334A is a typical and standard alloy steel single point load cell that is with large capacity by 2t and ideal for a wide range of weighing equipment. Environmentally sealed with potting compound to ensure reliability and durability. The industry standard size and mounting hole configuration makes the SP334A suitable for large-size platform by 1200*1200mm, or as a replacement for existed weighing equipment.
Besides for common applications of weighing equipment, it also can be used for force measurement on controlling.
Main Features:
· Material: Alloy steel
· Rated Capacities: 150kg~1t
· Great long-term stability.
· OIML R60, NTEP HB44, CE and RoHS certified
· IP Rating: IP65
· Suitable for single load cell structural platform scales, packaging scale, process weighing system.
· Max platform size: 1200*1200mm
For customised ranges, accuracy, dimensions and other parameters, please contact us.
| Parameter | Units | Specification | |
| Model No. | SP334A | ||
| Rated capacity (Emax) | kg | 150 / 250 / 500 / 1000 | |
| Accuracy class | C3 | ||
| Min. dead load | kg | 0 | |
| Rated output | mV/V | 2.0 ± 0.2 | |
| Zero balance | % of Emax | ＜ ± 2.0 | |
| Combined error 1)2) | % of Emax | ＜ ± 0.017 | |
| Repeatability error | % of AL 3) | ＜ ± 0.010 | |
| Creep; 30 minute | % of AL | ＜ ± 0.017 | |
| Min. dead load output return (DR); 30 min | % of AL | ＜ ± 0.017 | |
| Temp. effect on | Min. dead load output | % of Emax/℃ | ＜ ± 0.0023 |
| Rated output 2) | % of AL/℃ | ＜ ± 0.0012 | |
| Temperature range | Compensated | ℃(°F) | -10 to +40 [+14 to +104] |
| Operating | -10 to +50 [+14 to +122] | ||
| Safe storage | -30 to +70 [-22 to +158] | ||
| Excitation voltage | Recommended | V AC/DC | 5 ~ 15 |
| Maximum | 15 | ||
| Terminal resistance | Excitation | Ω | 382 ± 5 |
| Output | 350 ± 3 | ||
| Insulation resistance @50VDC | MΩ | ＞5000 | |
| Breakdown voltage | V AC | ＞500 | |
| Protection | Type | Silicone rubber over gage | |
| IP rating | IP65 | ||
| Load limit | Safe | % of Emax | 150 |
| Ultimate | 300 | ||
| Material | Spring element | Alloy steel; nickel plated | |
| Cable | Φ6; 4-wire; PVC [Optional: 6-wire] | ||
| Cable length | m | 3.0 | |
| Maximum platform size | mm | 800*800 | |
| Offer center load error (OIML R76) | % of AL/cm | ＜ ± 0.0016 | |
| Fatigue life | cycles @Emax | ＞1,000,000 | |
| Deflection at Emax; approx | mm | ＜0.5 | |
| Weight; approx | kg | 4.0 | |
| Barometric pressure effect on Zero Output | Vmin/kPa | ＜1.0 | |
| Mounting screw | Size/Grade | M14-10.9 | |
| Recommended torque | N.m | 98.0 | |
| Notes: | |||
| 1) Error due to the combined effect of non-linearity and hysteresis | |||
| 2) The sum of errors due to Temperature Effect on Output comply with the requirements of OIML R60 and NIST HB44 | |||
| 3) AL = Applied Load | |||
