SP1041 SINGLE-POINT LOAD CELL
Product description:

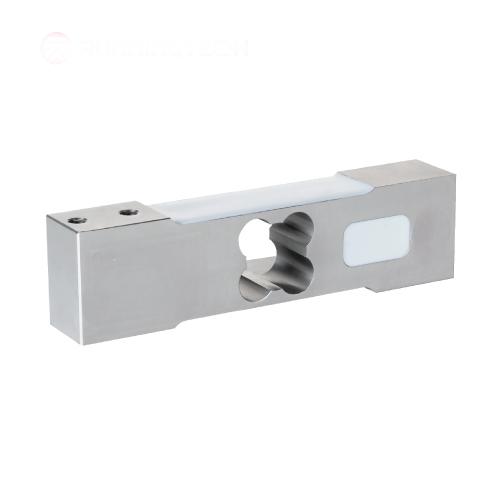

SP1041 is a typical and standard aluminum single point load cell that is compact, low capacity and ideal for a wide range of weighing equipment. Environmentally sealed with potting compound to ensure reliability and durability. The industry standard size and mounting hole configuration makes the SP1041 is suitable for new equipment manufacturer or as a replacement for existed weighing equipment.
Main Features:
• Material: Aluminum
• Rated Capacities: 10kg~100kg
• OIML R60, NTEP HB44, CPA, CE and RoHS certified
• IP Rating: IP66
• Suitable for pricing scales, counting scales, bench scales, etc.
• Max platform size: 400*400mm
For customised ranges, accuracy, dimensions and other parameters, please contact us.
| Parameter | Units | Specification | |
| Model No. | SP1041 | ||
| Rated capacity (Emax) | kg | 10 / 20 / 30 / 50 / 100 | |
| Accuracy class | C3 C6 | ||
| Min. dead load | kg | 0 | |
| Rated output | mV/V | 2.0 ± 0.2 | |
| Zero balance | % of Emax | ± 2 | |
| Repeatability error | % of AL 3) | ＜ ± 0.010 ＜ ± 0.005 | |
| Creep; 30 minute | % of AL | ＜ ± 0.017 ＜ ± 0.0083 | |
| Min. dead load output return (DR); 30 min | % of AL | ＜ ± 0.017 ＜ ± 0.0083 | |
| Temp. effect on | Min. dead load output | % of Emax/℃ | ＜ ± 0.0020 ＜ ± 0.0014 |
| Rated output 2) | % of AL/℃ | ＜ ± 0.0012 ＜ ± 0.0006 | |
| Temperature range | Compensated | ℃(°F) | -10 to +40 [+14 to +104] |
| Operating | -10 to +50 [+14 to +122] | ||
| Safe storage | -30 to +70 [-22 to +158] | ||
| Excitation voltage | Recommended | V AC/DC | 5 ~ 15 |
| Maximum | 15 | ||
| Terminal resistance | Excitation | Ω | 403 ± 10 |
| Output | 350 ± 3 | ||
| Insulation resistance @50VDC | MΩ | ＞5000 | |
| Breakdown voltage | V AC | ＞500 | |
| Seal type / IP rating | potted silicon sealed / IP66 | ||
| Load limit | Safe | % of Emax | 150 |
| Ultimate | 300 | ||
| Material | Spring element | Aluminum, anodizing | |
| Cable | Φ5.6; 4-wire; PVC | ||
| Cable length | m | 2.0 | |
| Maximum platform size | mm | 400*400 | |
| Offer center load error (OIML R76) | % of AL/cm | ＜ ± 0.0028 | |
| Fatigue life | cycles@Emax | ＞1,000,000 | |
| Deflection at Emax; approx | mm | ＜0.5 | |
| Weight; approx | kg | 0.4 | |
| Barometric pressure effect on Zero Output | Vmin/kPa | ＜1.0 | |
| Mounting screw | Size/Grade | M6 / 8.8 | |
| Recommended torque | N.m | ＜50kg: 10; ≥50kg: 15 | |
| Notes: | |||
| 1) Error due to the combined effect of non-linearity and hysteresis | |||
| 2) The sum of errors due to Temperature Effect on Output comply with the requirements of OIML R60 and NIST HB44 | |||
| 3) AL = Applied Load | |||
