LP510S LOAD PIN
Product description:

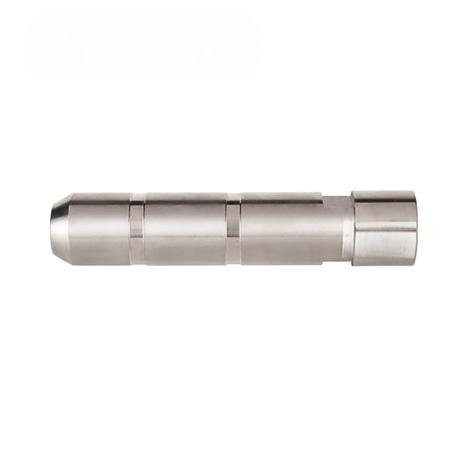

LP510S is special double ended shear beam load cell, its sharp is pin, it is with throughout-hole to accommodate strain gauge, instead of typical side 4pcs cavities, which improve sealing performance significantly, not easy damaged in harsh environment.
Main Features:
• Material: Stainless steel
• Rated Capacities: 25KN~90KN
• Through-hole to accommodate strain gauge
• IP Rating: IP69K
• Suitable for force measurement device and safety controlling against overload
• Excellent sealing performance
For customised ranges, accuracy, dimensions and other parameters, please contact us.
| Parameter | Units | Specification | |
| Model No. | LP510S | ||
| Rated capacity (Emax) | kN | 90kN | |
| Min. dead load | kg | 0 | |
| Rated output | mV/V | 1.0 ± 0.5% | |
| Zero balance | % of Emax | ± 1 | |
| Combined error 1)2) | % of Emax | ＜ ± 0.5 | |
| Repeatability error | % of AL 3) | ＜ ± 0.3 | |
| Creep; 30 minute | % of AL | ＜ ± 0.1 | |
| Min. dead load output return (DR); 30 min | % of AL | ＜ ± 0.1 | |
| Temp. effect on | Min. dead load output | % of Emax/℃ | ＜ ± 0.005 |
| Rated output 2) | % of AL/℃ | ＜ ± 0.01 | |
| Temperature range | Compensated | ℃(°F) | -10 to +40 [+14 to +104] |
| Operating | -30 to +65 [-22 to +149] | ||
| Safe storage | -40 to +80 [-40 to +176] | ||
| Excitation voltage | Recommended | V AC/DC | 5 ~ 15 |
| Maximum | 20 | ||
| Terminal resistance | Excitation | Ω | 382 ± 10 |
| Output | 350 ± 3 | ||
| Insulation resistance @50VDC | MΩ | ＞5000 | |
| Breakdown voltage | V AC | ＞500 | |
| Seal type / IP rating | Hermetically welded / IP68 | ||
| Load limit | Safe | % of Emax | 300 |
| Ultimate | 500 | ||
| Material | Spring element | Stainless steel | |
| Cable | Φ6; 4-wire; PVC | ||
| Cable length | m | 3.0 | |
| Weight; approx | kg | 1.6 | |
| Fatigue life | cycles @Emax | ＞1,000,000 | |
| Deflection at Emax; approx | mm | ＜0.5 | |
| Notes: | |||
| 1) Error due to the combined effect of non-linearity and hysteresis | |||
| 2) The sum of errors due to Temperature Effect on Output comply with the requirements of OIML R60 and NIST HB44 | |||
| 3) AL = Applied Load | |||
