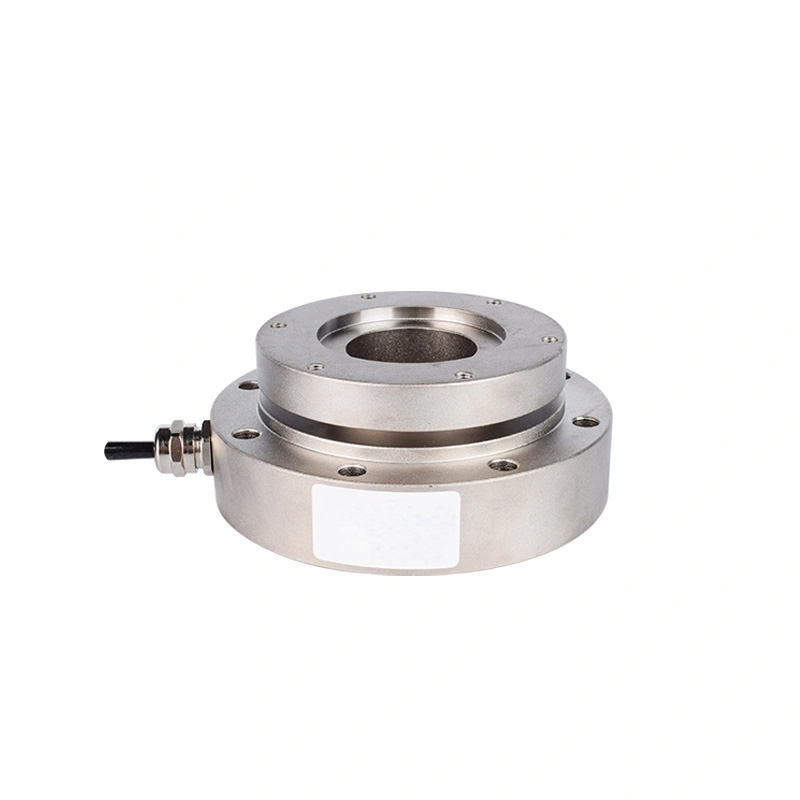

UT172 Double Flange Load Cell
Micro Compression Force Sensor
D 108mm*H 44mm
Capacity: 3T
For customised ranges, accuracy, dimensions and other parameters, please contact us.
| Product FeaturesSL157 annular hollow force measuring sensor with central control ring press type construction. Can be controlled through the screw by linking to a computer data acquisition storage connected to a terminal such as a PLC. Small size, low installation height, small deformation, high precision, good long-term stability, and strong anti-bias load capacity. |
Technical Specifications
| Specification | Technical Indicators |
| Capacity | 3t |
| Rated Output | 1.5±10%mV/V |
| Zero Balance | ±0.05mV/V |
| Creep | ≤0.1%F.S. |
| Non-Linearity | ≤0.2%F.S. |
| Hysteresis | ≤0.2%F.S. |
| Repeatability | ≤0.1%F.S. |
| Repeatability | 700±20Ω |
| Output Impedance | 700±10Ω |
| Temp. effect on output | 0.05%F.S./10℃ |
| Temp. effect on zero | 0.05%F.S./10℃ |
| Insulation Resistance | ≥5000MΩ/100V(DC) |
| Recommended Excitation | 5V |
| Maximum Excitation | 15V |
| Compensated Temp Range | -10~60℃ |
| Operating Temp Range | -20~80℃ |
| Safe Overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Cable Size | φ5X5000mm |
| Material | Alloy steel |
Product Dimensions
Installation size
Load Direction
Wiring Diagram
Accurate measurement with matching display
The output of the force measuring and weighing sensor itself is an MV signal, which needs to be amplified and convertedto display numerical values or output signals to the upper computer, PLC, etc.
