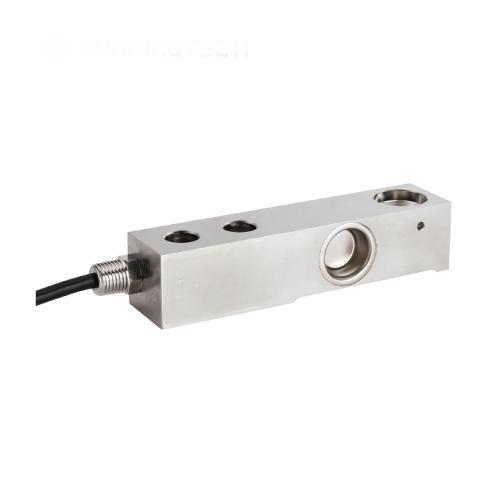

B550S/B750S SINGLE-ENDED BEAM LOAD CELL
Product description：
The B550, B750 series are typical and high precision, low profile single-ended shear beam available in a wide range of capacities. Full stainless steel construction and complete hermetic sealing ensures reliable accuracy and robustness in harsh industrial applications. The B550, B750 are the ideal load cell for high precision weighing platforms with bolts by 2pcs through-holes firmly at end, meanwhile the force would be applied from the self-aligning level-pin settled into the blind hole at the other end vertically.
Main Features:
• Material: high-quality stainless steel
• Great long-term stability.
• Rated Capacities: 550kg~4.4t
• OIML R60, NTEP HB44, CE and RoHS certified
• IP Rating: IP68
• Suitable for platform scales, dosing system and process control in chemical, food, pharmaceutical and other industries.
• High precision by OIML R60 C5, high reliability.
• B750S with 17-4PH material and PEEK strain gauge from HBK.
For customised ranges, accuracy, dimensions and other parameters, please contact us.
| Patameter | Units | Specifications | ||||
| Model No. | B550S/B750S | |||||
| Rated capacity (Emax) | t | 0.22；0.55；1.1 | 2.2 | 4.4 | ||
| Accruacy class 1)2) | C3 C5 | |||||
| Min. dead load | kg | 0 | ||||
| Rated output | mV/V | 1.94 ± 0.002 | ||||
| Zero balance | % of Emax | ＜ ± 1 | ||||
| Repeatability error | % of AL 3) | ＜ ± 0.010 ＜ ± 0.006 | ||||
| Creep; 30 minute | % of AL | ＜ ± 0.017 ＜ ± 0.010 | ||||
| Min. dead load output return (DR); 30 min | % of AL | ＜ ± 0.017 ＜ ± 0.010 | ||||
| Temp. effect on | Min. dead load output | % of Emax/℃ | ＜ ± 0.0020 ＜ ± 0.0014 | |||
| Rated output 2) | % of AL/℃ | ＜ ± 0.0012 ＜ ± 0.0007 | ||||
| Temperature range | Compensated | ℃(°F) | -10 to +40 [+14 to +104] | |||
| Operating | -40 to +65 [-40 to +149] | |||||
| Safe storage | -40 to +80 [-40 to +176] | |||||
| Excitation voltage | Recommended | V AC/DC | 5 ~ 15 | |||
| Maximum | 15 | |||||
| Terminal resistance | Excitation | Ω | 384 ± 5 | |||
| Output | 350 ± 3 | |||||
| Insulation resistance @50VDC | MΩ | ＞5000 | ||||
| Breakdown voltage | V AC | ＞500 | ||||
| Seal type / IP rating | Hermetically welded / IP68 IP69k | |||||
| Load limit | Safe | % of Emax | 150 | |||
| Ultimate | 300 | |||||
| Material | Spring element | Stainless steel [ B750S: 17-4PH ] | ||||
| Strain gauge | PEEK [ B750S: HBK SG ] | |||||
| Cable | Φ5.6; 4-wire; PVC [ B750S: PU ] | |||||
| Cable length | m | 5.0 | ||||
| Weight; approx | kg | 0.22~1.1t | 2.2t | 4.4t | ||
| 1.0 | 1.4 | 4.0 | ||||
| Fatigue life | cycles @Emax | ＞1,000,000 | ||||
| Deflection at Emax; approx | mm | ＜0.5 | ||||
| Barometric pressure effect on Zero Output | Vmin/kPa | ＜1.0 | ||||
| Mounting screw | Size/Grade | M12 / A2-70 | M12 / A2-70 | M18 / A2-70 | ||
| Recommended torque | N.m | 98 | 120 | 275 | ||
| Notes: | ||||||
| 1) Error due to the combined effect of non-linearity and hysteresis | ||||||
| 2) The sum of errors due to Temperature Effect on Output comply with the requirements of OIML R60 and NIST HB44 | ||||||
| 3) AL = Applied Load | ||||||
