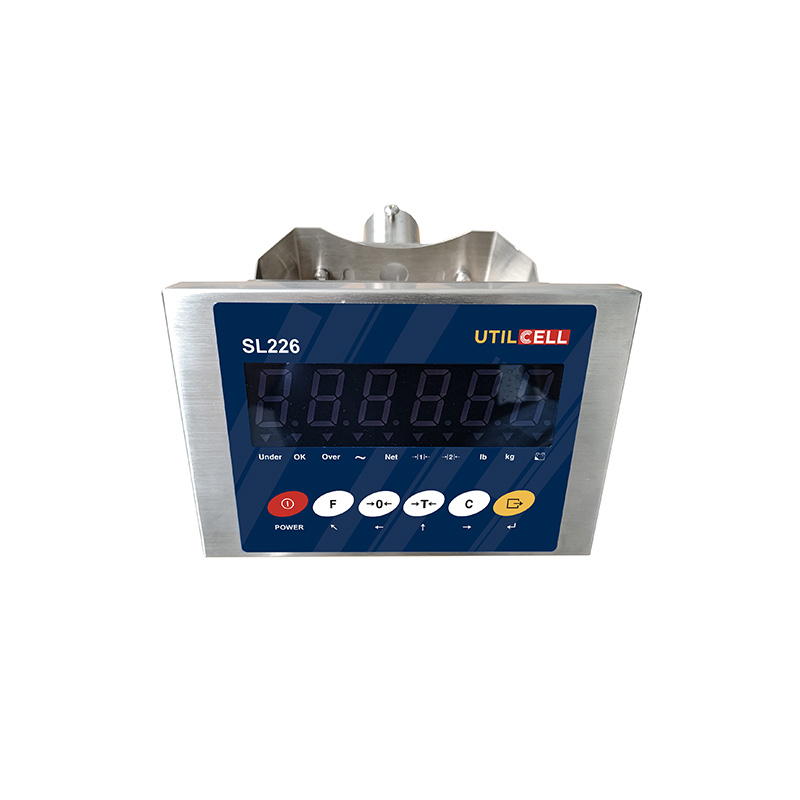

SL226 Weighing Indicator
① Bench scale, platform scale, ②IP54 plastic shell, IP66 waterproof stainless steel shell ③ Support RS232/485, WIFI, Ethernet TCP/IP, Bluetooth ④ Typical applications: platform scale instrument, platform scale instrument, Over/Under/OK sorting scale instrument, counting scale instrument, livestock scale instrument.
For customised ranges, accuracy, dimensions and other parameters, please contact us.
1.1 Features :
Fully isolated design, power supply, sensor, serial port, option board, mutual isolation ● no weight calibration, adapt to complex weighing conditions ● TEDS interface, with TESD sensor to achieve calibration free ●10V sensor excitation, display up to 200,000 degrees ● Built-in a variety of applications, Comparison of upper and lower limits, check weight, preset points, peak capture ● Measurement, analysis, and control functions can be added according to customer requirements.
Option:
■ NI-MH Ni-MH battery pack, GP 7.2VDC, 3800mAh ■ Lead-acid rechargeable battery, 6V4.0AH
■ Ethernet interface Option ■ WIFI interface option ■ Bluetooth interface option ■ Real-time clock RTC
Parameter:
|
Display Window |
6-digit red/green LED display |
Read |
10000 e |
|
Measurement Sensitivity |
≥0.5 μV/e |
Minimum Sensitivity |
200000 d |
|
Output Linearity |
0.002% |
Overall Accuracy |
Better 0.01% |
|
A/D Conversion Speed |
≤50T/S |
Acceptance Sensitivity |
0.1~+20 mV |
|
Input Load |
4 of 3500 sensors |
Interface |
RS485/RS232--Modbus |
|
Fullcale Temperature Drift |
≤10ppm /℃ |
Zero Temperature Drift |
≤10μV /℃ |
|
Exc Voltage |
5VDC |
Power Supply |
100~240VAC/50~60HZ |
|
Overall Power Consumption |
≤10W |
Operating Temperature Range |
-20~70℃ |
|
Unit Weight |
2.5kg |
Material |
Pl or Stainless Steel Optional |
|
Protection Rating |
IP66 |
||
Product Size:
