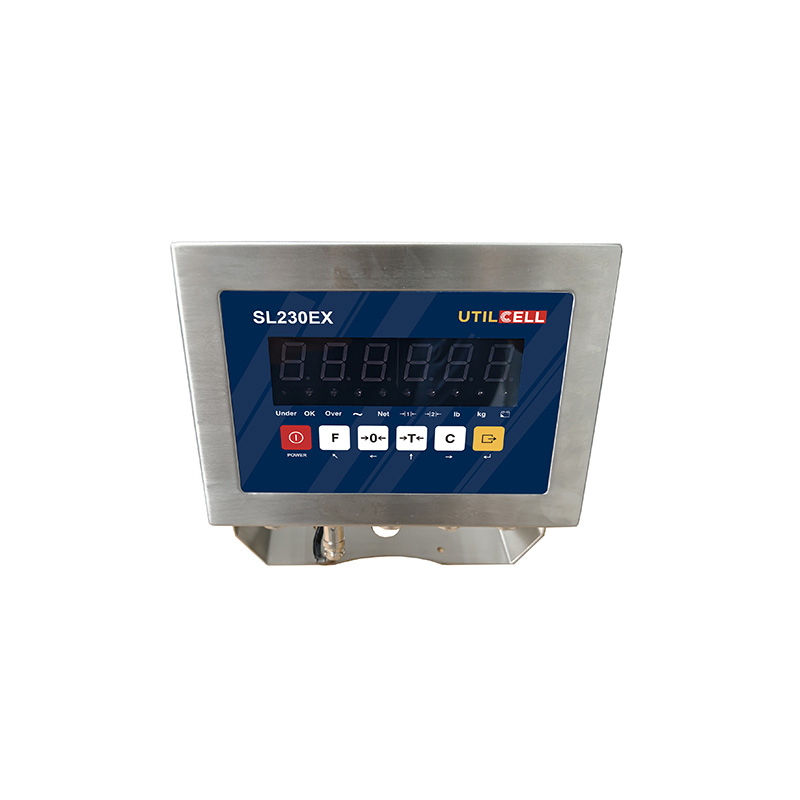

SL-230EX Explosion-proof Weighing Instrument
SL-EX230 uses Delta-sigma analog-to-digital conversion and digital analog processing technology. The weak weight signal output by the simple load sensor (group) is digitally processed, and the corresponding analog electrical signal is output to the user's upper system. It can be easily used with the touch screen or PLC group SL-EX230 through RS232/485 serial communication, Bluetooth wireless, etc. Delta-sigma analog-to-digital conversion and digital analog processing technology. The weak weight signal output by the simple heavy sensor (group) is digitally processed, and the corresponding analog electrical signal is output to the user's upper system. It can easily form a weighing system with a touch screen or PLC through RS232/485 serial communication, Bluetooth wireless, etc.
For customised ranges, accuracy, dimensions and other parameters, please contact us.
Feature
Intrinsically safe explosion-proof battery power supply ● 11.1VDC intrinsically safe explosion-proof power supply
Explosion-proof level: EX ib IIC T4 Gb
·Display graduation 100,000
·6 350 ohm analog sensors
·Independent 1-way RS232, 1-way RS485 (optional)
·Shell: Stainless steel shell;
·Basic weighing functions: zeroing, tareing, tare cleaning and printing functions
·Automatic peeling and automatic printing functions
·Function: X10, simple checking and sorting, counting, animal weighing, percentage
·Battery low voltage alarm, automatic standby function,
· Expandable I/O, analog, supports MODBUS-RTU communication, networking function; supports Ethernet, Bluetooth, wifi, etc.
Specifications | |
Model | SL-EX230 |
Accuracy | |
Accuracy class | C3 |
Display Accuracy | 100,000 |
Power | |
Battery | 7.4VDC 4000mAh (Intrinsically safe explosion-proof battery) |
Voltage | 11.1VDC (Intrinsically safe explosion-proof power supply) |
Power consumption | (Less than 3W) |
Display | |
Display method | Green LED) |
Display Height | 28mm |
Display refresh speed | 10/S |
Key | |
Key number | 6 |
Power key | 1 |
串口Serial interface | |
COM1 Type | RS232 |
Baud rate | 1200,..,115200 |
COM2 Type | RS485 |
Baud rate | 1200,..,115200 |
Modbus-RTU | Both COM1 and COM2 support the Modbus RTU protocol |
Supports bilingual printing in both Chinese and English | |
Load cells | |
Excitation | 5VDC |
Max connect load cells | Six 350 ohm sensors |
连接方式 Connection method | 四线制或六线制 Four wire or six wiresensors |
标定 Calibration | 砝码标定和免砝码标定 Weight mode or Cal free mode |
选件 Options | |
I/O，4-20mA，0-5V,0-10V | |
安装 Mount | |
Mount method | Pole support, wall support |
Environment and Housing | |
Operation temperature | ondensation |
Explosion proof level | EX ib IIC T4 Gb |
Shell material | Stainless steel |
Size:
