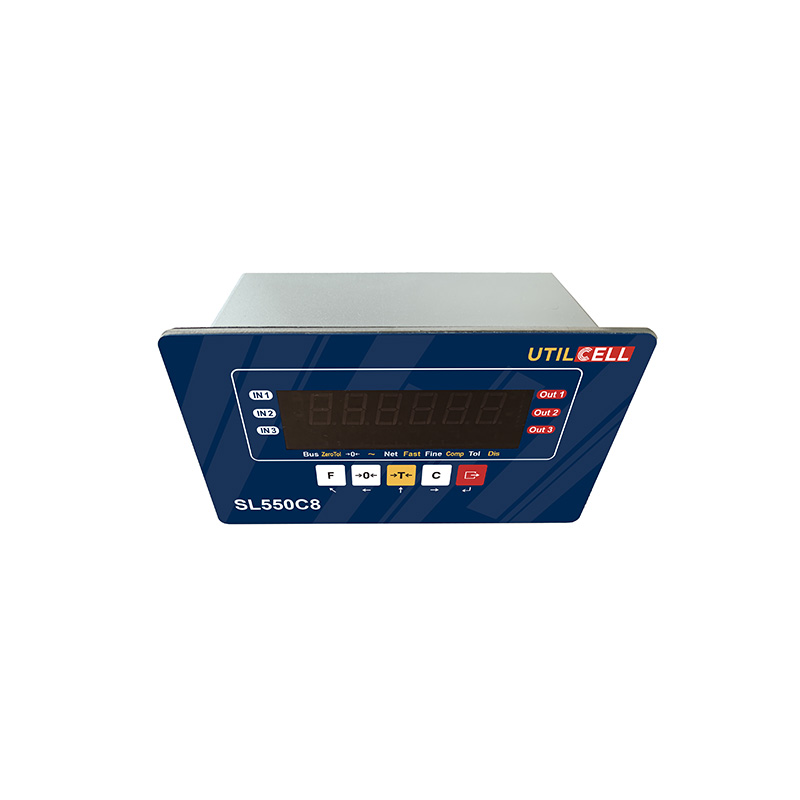

SL-550C8 Weighing Control Instrument
· 6-bit segment code display
· Support weight free calibration function and digital calibration function
· Multistage dynamic digital filtering
· Resist electromagnetic interference and external vibration
· Multiple options are supported
For customised ranges, accuracy, dimensions and other parameters, please contact us.
Product description
The SL550C8 is a panel mounted process control instrument mainly used in industrial processes
In the filling, packaging, batching and other occasions, through RS232 and 485 serial ports, it is easy to form a system with a touch screen or PLC.
Suitable for logistics, grease, pesticide, beverage, dairy, concrete, rubber, chemical, food and other industrial fields.
Feature
· Display index 100,000
·1 sensor interface, supports up to 8 350 ohm sensors
· One RS232 and one RS485 dual serial port, supporting MODBUS-RTU
·80HzA/D weight update speed
· Simply compare preset points, sequence control preset points, weight loss control preset points
Option
· Analog (AN) output
·3 in and 3 out I/O control
·10-100HZ weight continuous output
· 220VAC power supply or 24VDC power supply
Specifications and parameters | |
Parameter | |
Precision | III |
EU certification | Display index 100,000 |
Display and key | |
reveal | LED display |
Weighing status indication | Communication, tare, net weight, motion detection, zero point, speed and speed, completion signal |
key | 5 function keys (Function, tare,clear,zeroing, printing) |
Power switch | no |
Key lock | no |
A/D conversion | |
type | Σ/△ 24-bit AD conversion with analog and digital filtering |
Conversion rate | Maximum 80 times per second |
Minimum input value | 0.03 uv/d |
Certified minimum input | 0.03 uv/d |
Input range | -10mV to 30mV |
Accuracy | Display accuracy 100,000 |
Linearity and steadiness | |
Nonlinearity and temperature coefficient | Higher than 0.002％FS；≦5ppm/℃ |
Inductor | |
Excitation voltage | 5V DC |
Number of connected sensors | Eight 350 ohm sensors |
Connection mode | Four-wire or six-wire system |
Calibration and function of the scale | |
calibration | Weight calibration and free calibration |
Filtering | Multistage digital filtering |
Function of scale | Peeling, zero clearing, zero self-tracking, motion detection |
Other functions | Support RTC, analog output |
Entry point | 3 |
Output point | 3 |
Alibi memory | No |
General news | |
Serial communication | RS232、RS485、0-5V、0-10V、4-20mA |
Install | |
Installation mode | Panel mounting |
Environment and Shell | |||||
Operating temperature | -10℃ to 40℃, maximum temperature 95%, no condensation | ||||
Shell material | Front and rear panels 304 stainless steel, housing aluminum | ||||
power | 24VDC power input, the maximum power consumption of the whole indicator is 3W | ||||
Size | |||||
| |||||
Model selection | |||||
Model | Shell | Option 1 | Option 2 | Software | Language |
SL-550C8 | 0: panel | 0：220VAC 1：24VDC | 0: None 1:3 IN/3OUT+AN analog | 0：Basic type | 0：Chiness 1：English |
