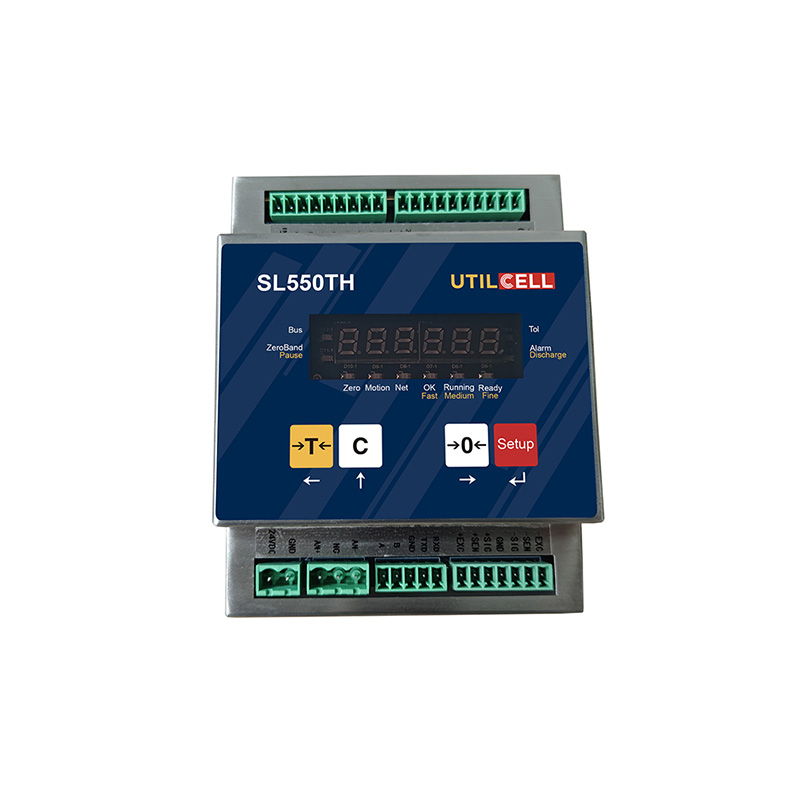

SL550TH Weighing Transmitter
6-digit LED display
· Support weight free calibration function and digital calibration function
· Multiple options are supported
· Multi-stage dynamic digital filtering to meet the requirements of high-speed dynamic weighing
· Resist electromagnetic interference and external vibration
For customised ranges, accuracy, dimensions and other parameters, please contact us.
Product Description
SL550TH is a stainless steel Type process control instrument, mainly used in industrial process multi-filling, packaging, batting, checking, sorting and other occasions, through RS232/485, CAN serial communication, easy to connect with touch screen or PLC as a system.
Applicable to pesticide, oil, beverage, chemical, feed, tobacco, powder metallurgy, pharmaceutical, Food and other industrial sectors.
Feature
·Division value :150,000
·One load cell interface, supports up to 6 350 ohm sensors
· One RS232 and one RS485 dual serial port, supporting MODBUS-RTU
· Simply compare preset points, sequence control preset points, weight loss control preset points
·100Hz~800Hz speed Select able A/D weight update speed
· High-speed dynamic weight check function, dual speed batching function of 4 kinds of materials
· Support 8-level weight sorting function
Option
·8 Input and 8 Output I/O control
·MODBUS-RTU
·CANBUS
Parameters | |
accuracy | |
accuracy class | III |
EU certification | Display index 150,000 |
Display and key | |
Display | 6 Digtal Led Display |
Weighing status indication | Tare, net weight, motion detection, zero, unit |
key | 4 function keys (GN, peel/clear,zero, print) |
Power switch | no |
Key lock | no |
A/D conversion | |
类型 | Σ/△ 24位AD转换，带模拟和数字滤波 |
转换速率 | 最大800次/秒 |
最高采样频率 | 800Hz |
零点漂移 | <0.02μV/℃ |
输入范围 | -10mV to 30mV |
精度 | 显示精度150，000 |
线 性 和 稳 定 性 | |
非线性和温度系数 | 高于0.002％FS；≦5ppm/℃ |
传 感 器 | |
激励电压 | 5V DC |
连接传感器数目 | 6个 350 欧姆传感器 |
连接方式 | 四线制或六线制 |
秤的标定和功能 | |
标定 | 砝码标定和免砝码标定 |
滤波 | 多级数字滤波 |
秤的功能 | 去皮、清零、零点自动跟踪、运动检测 |
其他功能 | 皮重值、皮重显示 |
输入点 | 8 |
输出点 | 8 |
Alibi 内存 | No |
通讯 | |
串口通讯 | RS232/485、MODBUSRTU、CAN |
安装 | |
安装方式 | 标准工业导轨（DIN）安装 |
环境和外壳 | |||||
工作温度 | -10℃到40℃，最大温度95％，无冷凝 | ||||
外壳材质 | 304不锈钢 | ||||
功率 | 24VDC电源输入，整机最大功耗3W | ||||
外形尺寸 | |||||
| |||||
Model selection | |||||
Model | Shell | Option 1 | Option 2 | Software | Language |
SL550TH | 1：导轨 | 0：No | 0：8IN/8OUT | 1：灌装 2：包装 3：配料 4：检重 | 0：Chiness 1：English |
