UT122A Low Profile Button Type Load Cell
Micro Compression Force Sensor
D 20mm*H 5mm
Capacity: 100,200,500,1000N
For customised ranges, accuracy, dimensions and other parameters, please contact us.
| Product FeaturesSL107A miniature compression force sensor, made of robust 17-4 PH stainless steel, uses the high precision resistance strain gauge principle, is pressure loaded and easy to install and use. The cable shield and the sensor housing are electrically connected to ensure interference-free measurement under unfavorable EMC conditions. The working temperature range is -20℃~80℃. |
Technical Specifications
| Specification | Technique |
| Capacity | 100,200,500,1000N |
| Rated Output | 1.5±20%mV/V |
| Zero Balance | ±2%mV/V |
| Creep | ≤0.1%F.S. |
| Non-Linearity | ≤0.5%F.S. |
| Hysteresis | ≤0.2%F.S. |
| Repeatability | ≤0.1%F.S. |
| Input Impedance | 800~1000Ω |
| Output Impedance | 800~1000Ω |
| Temp. effect on output | 0.05%F.S./10℃ |
| Temp. effect on zero | 0.05%F.S./10℃ |
| Insulation Resistance | ≥5000MΩ/100V(DC) |
| Recommended Excitation | 5~12V |
| Maximum Excitation | 15V |
| Compensated Temp Range | -10~60℃ |
| Operating Temp Range | -20~80℃ |
| Safe Overload | 150% F.S. |
| Ultimate Overload | 200% F.S. |
| Cable Size | φ2X3m |
| Material |

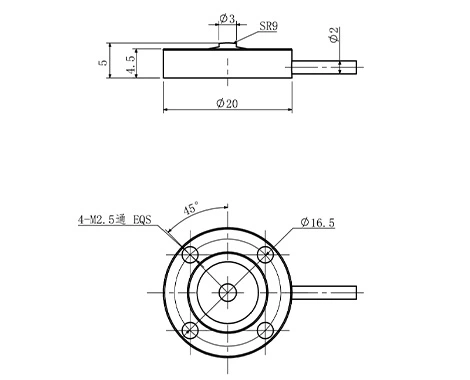

Product Dimensions
Installation size

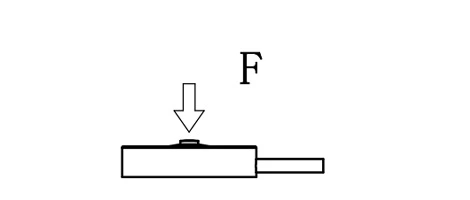

Load Direction

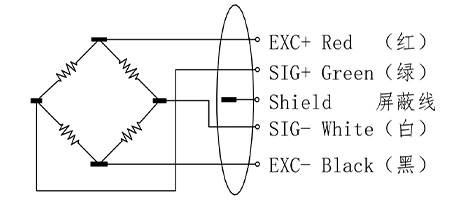

Wiring Diagram
Accurate measurement with matching display
The output of the force measuring and weighing sensor itself is an MV signal, which needs to be amplified and convertedto display numerical values or output signals to the upper computer, PLC, etc.
