UT122B Planar Load Cell Force Sensor
Micro Compression Force Sensor
D 20mm*H 6mm
Capacity: 100,200,300,500N
For customised ranges, accuracy, dimensions and other parameters, please contact us.

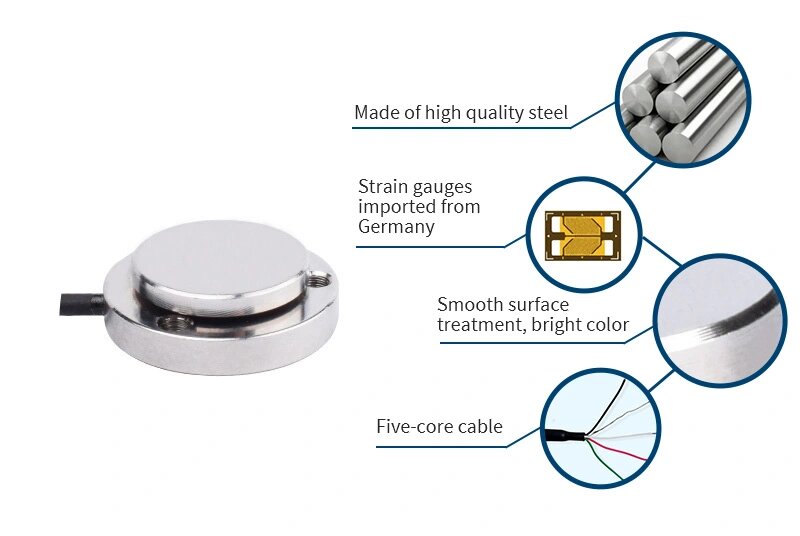

| Product FeaturesThe SL107B flat force transducer has a low profile, upper and lower flange construction, high accuracy, good strength, easy installation and good output symmetry. The cable shield and the sensor housing are electrically connected to ensure interference-free measurement under unfavorable EMC conditions. The working temperature range is -20℃~80℃. |
Technical Specifications
| Specification | Technique |
| Capacity | 100,200,300,500N |
| Rated Output | 1.0±20%mV/V |
| Zero Balance | ±0.05mV/V |
| Creep | ≤0.1%F.S. |
| Non-Linearity | ≤0.5%F.S. |
| Hysteresis | ≤0.3%F.S. |
| Repeatability | ≤0.3%F.S. |
| Input Impedance | 800~1100Ω |
| Output Impedance | 800~1100Ω |
| Temp. effect on output | 0.1%F.S./10℃ |
| Temp. effect on zero | 0.1%F.S./10℃ |
| Insulation Resistance | ≥5000MΩ/100V(DC) |
| Recommended Excitation | 5~12V |
| Maximum Excitation | 15V |
| Compensated Temp Range | -10~60℃ |
| Operating Temp Range | -20~80℃ |
| Safe Overload | 150% F.S. |
| Ultimate Overload | 200% F.S. |
| Cable Size | φ2X3m |
| Material |

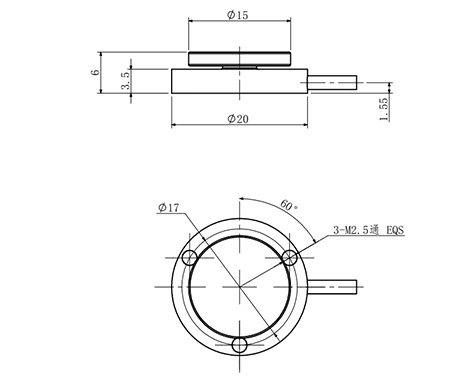

Product Dimensions
Installation size

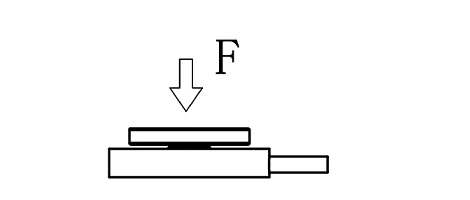

Load Direction

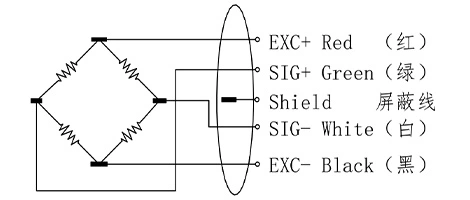

Wiring Diagram
Accurate measurement with matching display
The output of the force measuring and weighing sensor itself is an MV signal, which needs to be amplified and convertedto display numerical values or output signals to the upper computer, PLC, etc.
