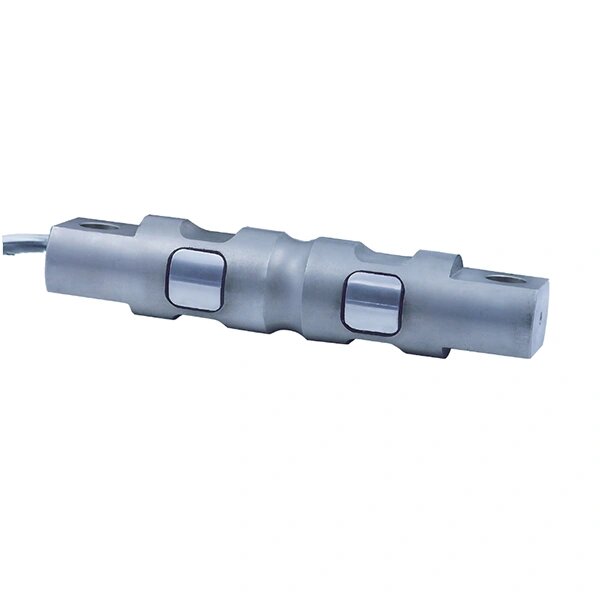

Maximum capacity (Emax)

5/10/15/20/30/40/50/60/75/90/100/150/200/250klb

Accuracy class

C3

C4

A5M

B10M

Maximum number of load cell intervals (nLC)

3000nmax

4000nmax

Ⅲ 5000 Multiple

Ⅲ L 10000 Multiple

Ratio of minimum LC verification intervalY=Emax / Vmin

Emax/10000Vmin

Emax/14000Vmin

Emax/15000Vmin

Emax/10000Vmin

Combined error

≤±0.020%FS

≤±0.018%FS

≤±0.026%FS

≤±0.050%FS

Creep

≤±0.016%FS/30min

≤±0.012%FS/30min

≤±0.017%FS/30min

≤±0.040%FS/30min

Temperature effect on sensitivity

≤±0.011%FS/10℃

≤±0.009%FS/10℃

≤±0.013%FS/10℃

≤±0.040%FS/10℃

Temperature effect on zero

≤±0.015%FS/10℃

≤±0.010%FS/10℃

≤±0.014%FS/10℃

≤±0.020%FS/10℃

Output sensitivity (=FS)

3.0±0.008mV/V

Input resistance

700±7Ω

Output resistance

703±4Ω

Insulation resistance

≥5000MΩ(50VDC)

Zero balance

≤±1.0%FS

～

Compensated temperature

-10   +40℃

～

Operating temperature

-35   +70℃

Excitation, recommended voltage

5~12VDC

Excitation maximum

18VDC

Safe overload

150%FS

Ultimate overload

300%FS

ATEX classification (optional)

II1G Ex ia II1C T4/II1D Ex iaD20 T73℃/II3G Ex nL II C T4

Wiring

Red: Input+, Green: Output+, Transparent: Shield,Black: Input-,White: Output- Shielded, 4 conductor cable diameter for 5k - 20k:Φ5mm and for 30k - 250k: Φ8mm； Standard cable length: 9m.

NTEP A5S/B10M Certificate (Klb-250Klb)

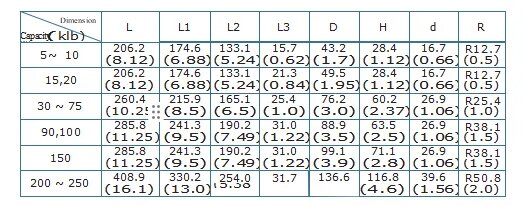

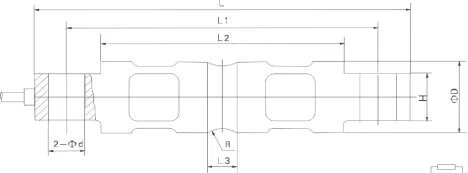

xxklb

A5M/B10M

FA5133-xx-xxK-9B

5klb-250klb approved by PTB C3. 5klb-20klb approved by PTB C4.

5klb-250klb approved by NTEPA5M/B10M.
