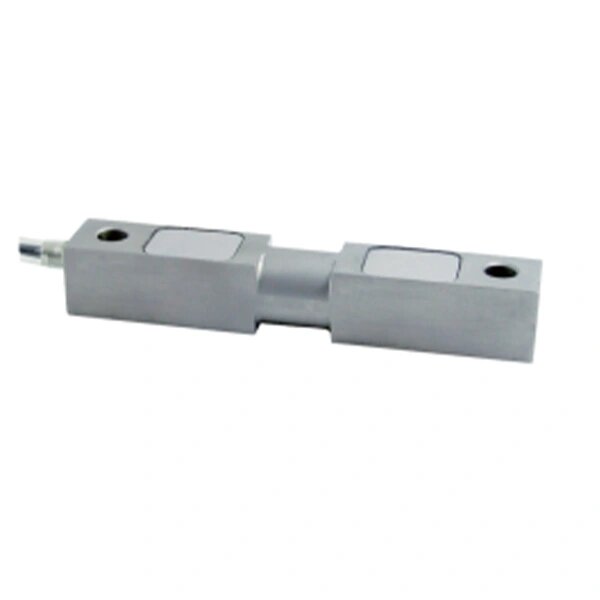

Maximum capacity (Emax)

1/1.5/2/2.5/4/5/10/15/20/25/35/50/75klb

Accuracy class

C3

C4

A5M

B10M

Approvals

OIML R60 C4

Ⅲ 5000 Multiple

Ⅲ L 10000 Multiple

Maximum number of load cell intervals(nLC)

3000nmax

4000nmax

5000

10000

Ratio of minimum LC verification intervaY=Emax / Vmin

Emax/10000Vmin

Emax/14000Vmin

Emax/15000Vmin

Emax/10000Vmin

Combined error

≤±0.020%FS

≤±0.018%FS

≤±0.026%FS

≤±0.050%FS

Creep

≤±0.016%FS/30min

≤±0.012%FS/30min

≤±0.017%FS/30min

≤±0.040%FS/30min

Temperature effect on sensitivity

≤±0.011%FS/10℃

≤±0.009%FS/10℃

≤±0.013%FS/10℃

≤±0.040%FS/10℃

Temperature effect on zero

≤±0.015%FS/10℃

≤±0.010%FS/10℃

≤±0.014%FS/10℃

≤±0.020%FS/10℃

Output sensitivity (=FS)

3.0±0.008mV/V

Input resistance

700±7Ω

Output resistance

703±4Ω

Insulation resistance

≥5000MΩ(50VDC)

Zero balance

≤±1.0%FS

～

Temperature,compensated

-10   +40℃

～

Temperature,operating

-35   +70℃

Excitation, recommended voltage

5~12VDC

Excitation maximum

18VDC

Safe overload

150%FS

Ultimate overload

300%FS

ATEX classification (optional)

II1G Ex ia II1C T4/II1D Ex iaD20 T73℃/II3G Ex nL II C T4

Note: accuracy for B9D is C3, no OIML or NTEP approvals available.

Wiring

Red: Input+, Green: Output+, Transparent: Shield,Black: Input-,White: Output-

Shielded, 4 conductor cable diameter: Φ5mm；Standard cable length: 6m.

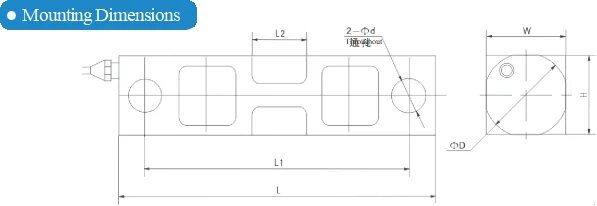

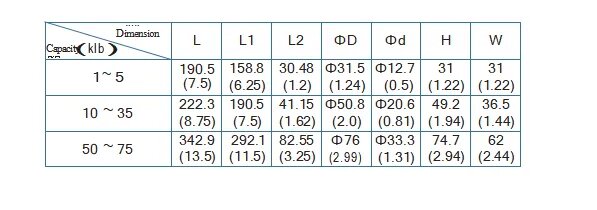

xxklb

C3/C4/C5/A5M/B10M

FA5135-xx-xxK-9B

1.8t-7.5t (4klb-15klb) approved by OIML C4. 9t-35t (19.8klb-70klb) approved by OIML C5. 20klb-75klb approved by NTEPA5M/B10M.
