B570S BENDING-TYPED LOAD CELL
Product description：

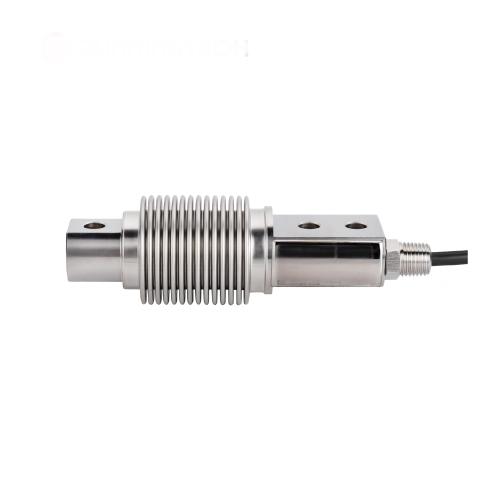

B570S is a bending-typed load cell, which is compact and high precision. Widely be applied onto process weighing, such as hopper scales, tank scales, silo scales, ect.
Main Features:
• Material: stainless steel
• Rated Capacities: 10kg~500kg
• OIML R60, NTEP HB44, CPA, CE and RoHS certified
• IP Rating: IP68 IP69K
• To be with dense corrugated sleeve to improve performance of low capacity
• To be with robust connector with external thread to fit cable protective tube
• Suitable for waterproof scales, process weighing equipment in Harsh working conditions
• High accuracy of OIML R60 C6
For customised ranges, accuracy, dimensions and other parameters, please contact us.
| Patameter | Units | Specifications | ||||
| Model No. | B570S | |||||
| Rated capacity (Emax) | kg | 10 / 20 / 30 / 50 / 100 / 200/ 300 / 500 | ||||
| Accruacy class 1)2) | C3 C6 | |||||
| Min. dead load | kg | 0 | ||||
| Rated output | mV/V | 2.0 ± 0.2 | ||||
| Zero balance | % of Emax | ＜ ± 1 | ||||
| Repeatability error | % of AL 3) | ＜ ± 0.010 ＜ ± 0.005 | ||||
| Creep; 30 minute | % of AL | ＜ ± 0.017 ＜ ± 0.0083 | ||||
| Min. dead load output return (DR); 30 min | % of AL | ＜ ± 0.017 ＜ ± 0.0083 | ||||
| Temp. effect on | Min. dead load output | % of Emax/℃ | ＜ ± 0.0020 ＜ ± 0.0014 | |||
| Rated output 2) | % of AL/℃ | ＜ ± 0.0012 ＜ ± 0.0007 | ||||
| Temperature range | Compensated | ℃(°F) | -10 to +40 [+14 to +104] | |||
| Operating | -40 to +65 [-40 to +149] | |||||
| Safe storage | -40 to +80 [-40 to +176] | |||||
| Excitation voltage | Recommended | V AC/DC | 5 ~ 15 | |||
| Maximum | 15 | |||||
| Terminal resistance | Excitation | Ω | 384 ± 5 | |||
| Output | 350 ± 3 | |||||
| Insulation resistance @50VDC | MΩ | ＞5000 | ||||
| Breakdown voltage | V AC | ＞500 | ||||
| Seal type / IP rating | Hermetically welded / IP68 IP69k | |||||
| Load limit | Safe | % of Emax | 150 | |||
| Ultimate | 300 | |||||
| Material | Spring element | Stainless steel | ||||
| Cable connector | Stainless steel [1/4-18NPT] | |||||
| Cable | Φ5.6; 4-wire; PVC | |||||
| Cable length | m | 3.0 | ||||
| Weight; approx | kg | 0.6 | ||||
| Fatigue life | cycles @Emax | ＞1,000,000 | ||||
| Deflection at Emax; approx | mm | ＜0.5 | ||||
| Barometric pressure effect on Zero Output | Vmin/kPa | ＜1.0 | ||||
| Mounting screw | Size/Grade | ≤ 200kg: M8*1.25-10.9 | ≥ 300kg: M10*1.5-10.9 | |||
| Recommended torque | N.m (ft-Ib) | 26(20) | 54(40) | |||
| Notes: | ||||||
| 1) Error due to the combined effect of non-linearity and hysteresis | ||||||
| 2) The sum of errors due to Temperature Effect on Output comply with the requirements of OIML R60 and NIST HB44 | ||||||
| 3) AL = Applied Load | ||||||
