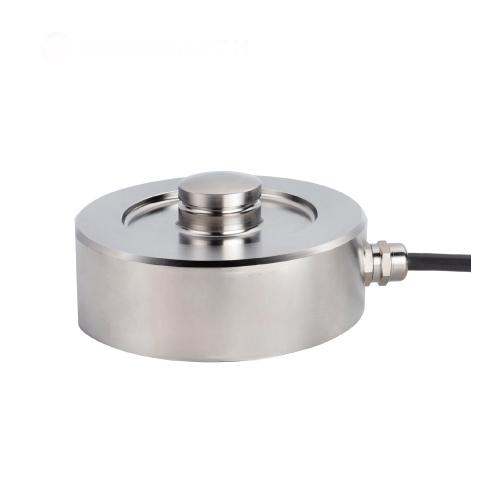

R510S COMPRESSION LOAD CELL
Product description:
R510S is a low-profile compression load cell, it is compact and high precision. It is widely suitable for applications in the food and chemicals industry, it is with smooth electro-polished surfaces so that it is easy to be cleaned, and is ideally suited to weighing applications in clean-in-place/sterilize-in-place environments. Full stainless steel constructure, completely hermetically sealed by laser. Also it is designed with mandrel with self-aligning arc point to receive force vertically to ensure the high force accuracy.
Main Features:
• Material: Stainless steel
• Rated Capacities: 1t~100t
• OIML R60, NTEP HB44, CPA, CE and RoHS certified
• IP Rating: IP68，IP69K
• Suitable for process weighing of hopper scales, silo scales, tank scales
• High precision by OIML R60 C5, high reliability
For customised ranges, accuracy, dimensions and other parameters, please contact us.
| Parameter | Units | Specification | ||||
| Model No. | R510S | |||||
| Rated capacity (Emax) | t | 1 / 2.5 / 5 / 10 / 15 / 20 / 30 / 50 / 100 | ||||
| Accruacy class 1)2) | C3 C5 | |||||
| Min. dead load | kg | 0 | ||||
| Rated output | mV/V | 2.0 ± 0.004 | ||||
| Zero balance | % of Emax | ± 1 | ||||
| Repeatability error | % of AL 3) | ＜ ± 0.010 ＜ ± 0.006 | ||||
| Creep; 30 minute | % of AL | ＜ ± 0.017 ＜ ± 0.010 | ||||
| Min. dead load output return (DR); 30 min | % of AL | ＜ ± 0.017 ＜ ± 0.010 | ||||
| Temp. effect on | Min. dead load output | % of Emax/℃ | ＜ ± 0.0018 ＜ ± 0.0014 | |||
| Rated output 2) | % of AL/℃ | ＜ ± 0.0012 ＜ ± 0.0007 | ||||
| Temperature range | Compensated | ℃(°F) | -10 to +40 [+14 to +104] | |||
| Operating | -40 to +65 [-40 to +149] | |||||
| Safe storage | -40 to +80 [-40 to +176] | |||||
| Excitation voltage | Recommended | V AC/DC | 5 ~ 15 | |||
| Maximum | 15 | |||||
| Terminal resistance | Excitation | Ω | 766 ± 10 | |||
| Output | 700 ± 3 | |||||
| Insulation resistance @50VDC | MΩ | ＞5000 | ||||
| Breakdown voltage | V AC | ＞500 | ||||
| Seal type / IP rating | Hermetically welded / IP68 IP69k | |||||
| Load limit | Safe | % of Emax | 150 | |||
| Ultimate | 300 | |||||
| Material | Spring element | Stainless steel | ||||
| Cable | Φ5.4; 4-wire; PVC | |||||
| Cable length | m | 1-10t | 15-100t | |||
| 6.0 | 12.0 | |||||
| Weight; approx | kg | 1-10t | 15-20t | 30t | 50-100t | |
| 1.5 | 2.0 | 3.5 | 7.0 | |||
| Fatigue life | cycles @Emax | ＞1,000,000 | ||||
| Deflection at Emax; approx | mm | ＜0.5 | ||||
| Barometric pressure effect on Zero Output | Vmin/kPa | ＜1.0 | ||||
| Notes: | ||||||
| 1) Error due to the combined effect of non-linearity and hysteresis | ||||||
| 2) The sum of errors due to Temperature Effect on Output comply with the requirements of OIML R60 and NIST HB44 | ||||||
| 3) AL = Applied Load | ||||||
