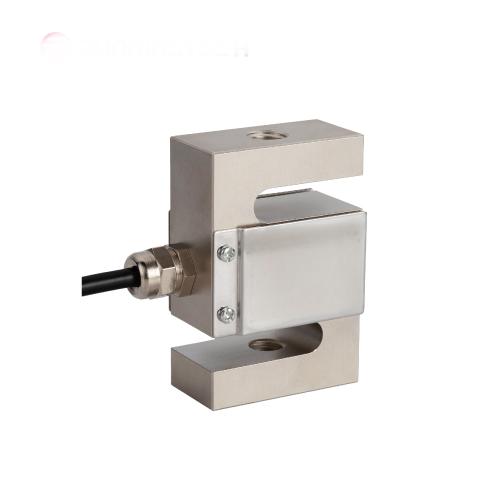

S510 SERIES S-BEAM LOAD CELL
Product description:
S510 is a square-shaped tension & compression load cell, completely hermetically sealed by laser to ensure it can work in harsh environment. Available in a wide range of capacities from 500lb to 10klb
Main Features:
• Material: Alloy steel (with imperial thread)
• Rated Capacity: 500lb~10klb
• OIML R60, NTEP HB44, CPA, CE and RoHS certified
• IP Rating: IP66 / IP68
• Suitable for process weighing of hopper scales, silo scales, tank scales, also force measurement.
• High precision by OIML R60 C5, high reliability
For customised ranges, accuracy, dimensions and other parameters, please contact us.
| Parameter | Units | Specification | |||
| Model No. | S510A | ||||
| Rated capacity (Emax) | KIb | 0.5 / 1 / 2 / 3 / 5 / 10 | |||
| Accruacy class 1)2) | C3 C5 | ||||
| Min. dead load | Ib | 0 | |||
| Rated output | mV/V | 3.0 ± 0.003 | |||
| Zero balance | % of Emax | ± 1 | |||
| Repeatability error | % of AL 3) | ＜ ± 0.010 ＜ ± 0.006 | |||
| Creep; 30 minute | % of AL | ＜ ± 0.017 ＜ ± 0.010 | |||
| Min. dead load output return (DR); 30 min | % of AL | ＜ ± 0.017 ＜ ± 0.010 | |||
| Temp. effect on | Min. dead load output | % of Emax/℃ | ＜ ± 0.0020 ＜ ± 0.0014 | ||
| Rated output 2) | % of AL/℃ | ＜ ± 0.0012 ＜ ± 0.0007 | |||
| Temperature range | Compensated | ℃(°F) | -10 to +40 [+14 to +104] | ||
| Operating | -40 to +65 [-40 to +149] | ||||
| Safe storage | -40 to +80 [-40 to +176] | ||||
| Excitation voltage | Recommended | V AC/DC | 5 ~ 15 | ||
| Maximum | 15 | ||||
| Terminal resistance | Excitation | Ω | 384 ± 5 | ||
| Output | 350 ± 3 | ||||
| Insulation resistance @50VDC | MΩ | ＞5000 | |||
| Breakdown voltage | V AC | ＞500 | |||
| Seal type / IP rating | Cap. ≤3 Klb: Silicon rubber / IP66 | ||||
| Cap. ≥5 Klb: Hermetically welded / IP68 | |||||
| Load limit | Safe | % of Emax | 140 | ||
| Ultimate | 200 | ||||
| Material | Spring element | Alloy steel; Nickel plated | |||
| Cable | Φ5; 4-wire; PVC | ||||
| Cable length | m | 5.0 | |||
| Weight; approx | kg | 0.5-3 klb | 5 KIb | 10 KIb | |
| 0.8 | 1.6 | 2.2 | |||
| Fatigue life | cycles @Emax | ＞1,000,000 | |||
| Deflection at Emax; approx | mm | ＜1.0 | |||
| Barometric pressure effect on Zero Output | Vmin/kPa | ＜1.0 | |||
| Notes: | |||||
| 1) Error due to the combined effect of non-linearity and hysteresis | |||||
| 2) The sum of errors due to Temperature Effect on Output comply with the requirements of OIML R60 and NIST HB44 | |||||
| 3) AL = Applied Load | |||||
