S530S

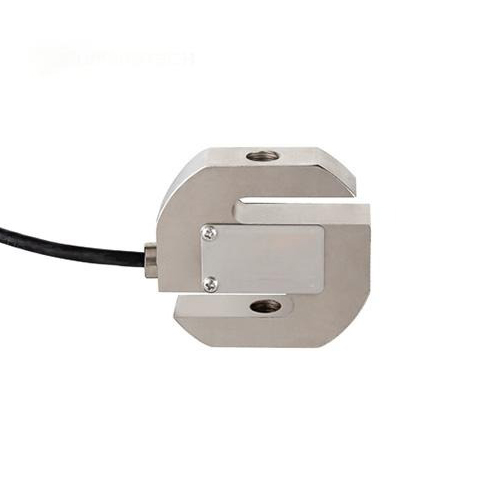

S530S S-BEAM LOAD CELL

Product description:

S530S a round-shaped tension & compression load cell, completely hermetically sealed by laser to ensue it can work in harsh environments. Available in a wide range of capacities from 300kg thru to 5t

Main Features:

• Material: stainless steel

• Rated Capacities: 300kg~5t

• OIML R60, NTEP HB44, CE and RoHS certified

• IP Rating: IP66, IP68

• Suitable for process weighing of hopper scales, silo scales, tank scales.

• High precision by OIML R60 C3, high reliability.


Category: Tension

For customised ranges, accuracy, dimensions and other parameters, please contact us.

Request For Quote
ParameterUnitsSpecification
Model No.
S530S
Rated capacity (Emax)t0.3; 0.5; 1; 2; 3; 5
Min. dead loadkg0
Rated outputmV/V2.0 ± 0.002
Zero balance% of Emax± 1
Combined error 1)2)% of Emax＜ ± 0.017
Repeatability error% of AL 3)＜ ± 0.010
Creep; 30 minute
% of AL＜ ± 0.017
Min. dead load output return (DR); 30 min
% of AL＜ ± 0.017
Temp. effect on
Min. dead load output% of Emax/℃＜ ± 0.0023
Rated output 2)% of AL/℃＜ ± 0.0020
Temperature range
Compensated℃(°F)
-10 to +40 [+14 to +104]
Operating-30 to +65 [-22 to +149]
Safe storage-40 to +80 [-40 to +176]
Excitation voltage
RecommendedV AC/DC5 ~ 15
Maximum15
Terminal resistance
ExcitationΩ
382 ± 5
Output350 ± 3
Insulation resistance @50VDCMΩ＞5000
Breakdown voltage
V AC＞500
Seal type / IP rating

Cap. ≤1t: Silicon rubber / IP66

Cap. ≥2t: Hermetically welded / IP68
Load limit
Safe% of Emax
150
Ultimate300
Material
Spring element
Stainless steel
Cable
Φ5; 4-wire; PVC
Cable length
m3.0
Weight; approx
kg
≤0.5t1t2-5t
0.70.92.0
Fatigue life
cycles @Emax＞1,000,000
Deflection at Emax; approx
mm＜0.5
Barometric pressure effect on Zero Output
Vmin/kPa＜1.0
Notes:
1) Error due to the combined effect of non-linearity and hysteresis
2) The sum of errors due to Temperature Effect on Output comply with the requirements of OIML R60 and NIST HB44
3) AL = Applied Load
